Universal Treadmill Controller for ICON PROFORM Nordic Track Nordictrack Reflex IC-Board LCD Display control panel Circuit Board

  • $172.73





General USE Universal Treadmill Controller for ICON PROFORM Nordic Track Nordictrack Reflex IC-Board LCD Display control panel Circuit Board


Specifications & List:

1. Part Model: Universal Controller

2. Application: for treadmill repair.

3. Quantity: Controller system (kit) * 1pcs.
(Controller+LCD display+Cable+Security key)

4. 110V/220V can use.

5. Warranty time: 90 days.

6. Stocking time: 1-7 days.


important hint:

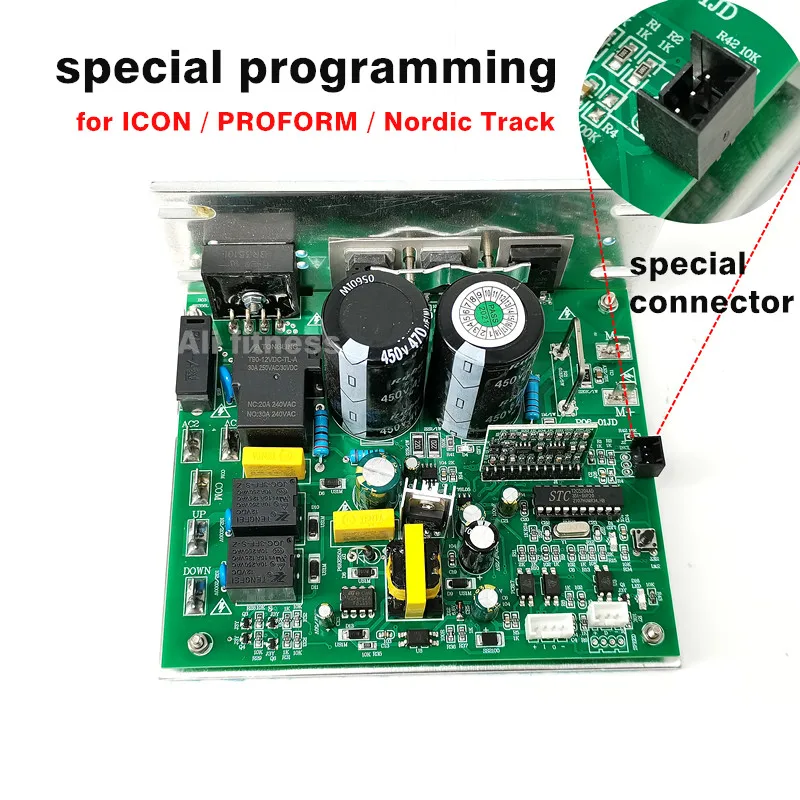

1. Since this is a "specially programmed" generic controller.

2. Therefore this ordering link is for ICON PROFORM Nordic Track Nordictrack Reflex treadmills only.

3.Default MAX speed: 12km/h
Adjust MAX speed: 16km/h

4. For use with ICON PROFORM Nordic Track Nordictrack Reflex treadmill only.

5. Only supports 1-4HP/90-230V DC motors. AC motors are not supported.

6.This controller set can work 100% without a speed sensor, so no need to worry.

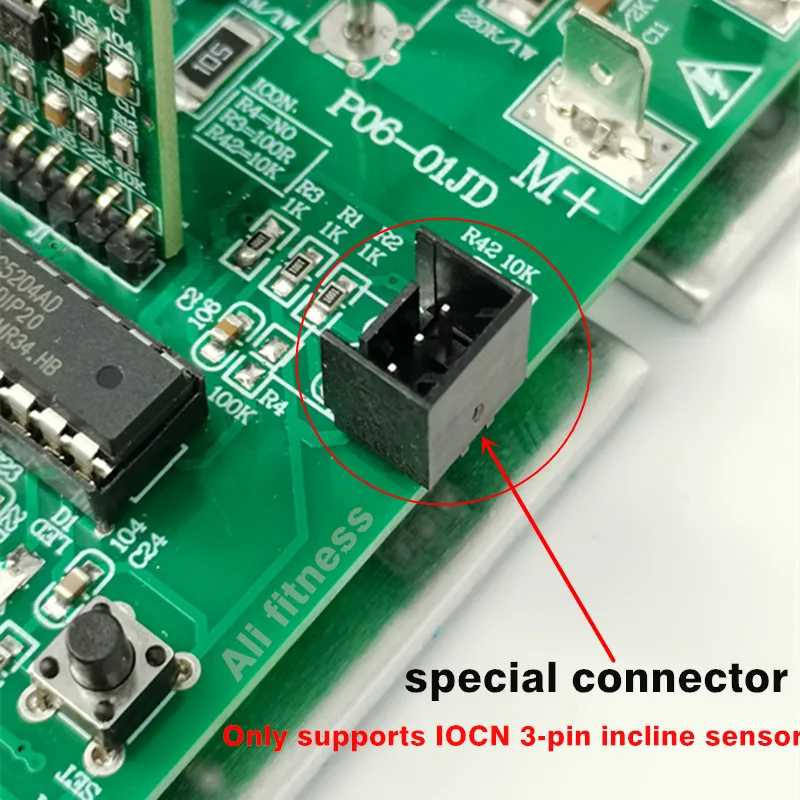

7. Only 3-pin tilt sensor is supported.
Do not order or contact us if your treadmill is 2-pin incline sensor.


Please make sure:

a. Motor performance OK
b. Transmit function OK, especially belt, lubrication normal.
c. Only work for home treadmill use DC motor.


Real picture ↓

for ICON PROFORM Nordic Track Nordictrack Reflex



Controller type discrimination↓

FAQ:

A. How to set Max speed 16km/h?(defaut max speed 12km/h)

1. remove safety key
2. press"mode" button for 3 seconds until you see 100

3. press"start" button twice until you see 102, the number on the right side of 102 is the default max speed--12

4. press speed+ to adjust the max speed, 16 max

5. press"start" button to save this setting

6. put safety key on display--OK now.

B: how do I connect speed sensor?

No need speed sensor for this kit

C. is it possible to adjust the inclination? the inclination is not flat.

YES, steps as below

1. remove safety key

2. press"mode" button for 3 seconds until you see 100

3. press"start" button several times until you see 105

4. 105=10.1 stands for incline function, 10.5=10.0 no incline function

5. press speed +_ button to adjust 10.0/10.1

5. press"start" button to save this setting

6. put safety key on display--OK now.

no. definition default range

101 mininum speed 1.0 0.5-3.0

102 max speed 12 3.0-16

103 speed calibration 13.5 1.0-20.0

104 /

105 incline function 10.0 10.0(no incline)/10.1(incline)

106 sensor 22.1

107 twisting force 3.0 0.5-20.0

PS: 106--21.9= with optical sensor 22.0=with magnetic sensor 22.1= with no sensor (this kit can work with no sensor)

107--if treadmill speed too high or too low, need to adjust the twisting force.

need to press start button to save setting.


Please make sure that the motor is in working order before placing your order. How to identify whether the motor is in working order ↓
1.Use 2-3PCS 5# batteries
2.Connect like photo
3.See motor running or not

User Feedback ↓

Feedback is the breakfast for the champion.Your feedback is very improtant to our business development and gauge of how can we doing. We sincerely invite you to leave positive feedback for us service.If you are satsdfied with our products and services.



contact us:

WhatsApp: +86 13826188736

Email: info@alifitnessequipment.com




Note: When contacting us, please state the content of the inquiry or provide the order ID.
